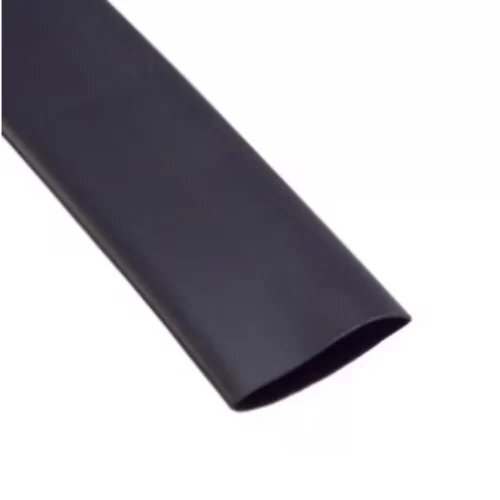

3M Heat Shrink FP 300

Name: 3M Heat Shrink FP 300
Brand: Samco Technologies
Price: 22 INR
Availability: InStock

Price 22 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

3M Heat Shrink FP 300 Specification

Thermal Conductivity
0.24 W/mK

Size
Multiple sizes available (diameters from 1.2 mm to 101.6 mm)

Density
1.35 Gram per cubic centimeter(g/cm3)

Layer
Single wall

Installation Guideline
Shrink with heat (120C) until tube fully recovers and seals around substrate

Feature
Flexible, flame retardant, weather-resistant, excellent physical and electrical performance

Surface Treatment
Smooth, semi-gloss

Product Type
Heat Shrinkable Tubing

Material
Polyolefin

Rated Voltage
600 V

Tensile Strength
10.4 MPa

Width
As per size specification

Thickness
0.51 mm (recovered)

Application
Electrical insulation, Mechanical protection, Wire bundling, Environmental sealing

Breakdown Voltage
Greater than 20 kV/mm

Heat Conductivity
Low

Color
Black

Max Withstanding Temperature
135C

Operating Temperature Range
-55C to 135C

Adhesive Lining
No (non-adhesive)

Standard Approvals
UL 224, CSA 198

Shrink Ratio
2:1

Dielectric Strength
20 kV/mm

Water Absorption
0.15% (ASTM D570)

Flammability
UL VW-1, self-extinguishing

Longitudinal Shrinkage
10%

3M Heat Shrink FP 300 Trade Information

Minimum Order Quantity
10 Pieces

Delivery Time
7 Days

Sample Available
Yes

Main Domestic Market
All India

About 3M Heat Shrink FP 300

Lightweight, tough and flexible. 3M Single Wall Tubing is the right choice for electrical insulation in many industrial and manufactured products. It's also dependable as a lightweight wire harness, wire marking, wire bundling, component packaging and fire resistant cover

Superior Electrical and Mechanical Protection

3M Heat Shrink FP 300 provides robust insulation, outstanding dielectric strength, and effective environmental sealing. Its flame-retardant and self-extinguishing properties ensure safety and reliability for all electrical applications, making it a trusted choice for professionals who prioritize protection and durability.

Flexible and Versatile Design

Designed with flexibility in mind, FP 300 features a 2:1 shrink ratio, smooth finish, and various sizes to accommodate a broad range of wire and cable diameters. Its polyolefin construction offers both mechanical protection and resistance to weather and chemicals, making it suitable for diverse industries and demanding environments.

Simple Installation and Trusted Certification

Installation is straightforward: apply heat (120C) until the tubing shrinks snugly around the substrate. FP 300 is certified to UL 224 and CSA 198 standards, ensuring it meets stringent requirements for electrical safety and performance. Its non-adhesive, single-wall design streamlines the installation process.

FAQ's of 3M Heat Shrink FP 300:

Q: How do I install 3M Heat Shrink FP 300 tubing?

A: To install 3M Heat Shrink FP 300, slide the tubing over the substrate, then apply heat at around 120C using a heat gun or other appropriate source. The tube will shrink to fit tightly, forming a secure seal around the material.

Q: What applications is the FP 300 heat shrink tubing suited for?

A: FP 300 is suitable for electrical insulation, mechanical protection, wire bundling, and environmental sealing. Its robust construction and certifications make it ideal for use in automotive, industrial, and electrical installations.

Q: When should I use FP 300 instead of other heat shrink tubing?

A: Choose FP 300 when you require a flame-retardant, self-extinguishing tubing with a 2:1 shrink ratio, superior mechanical and dielectric properties, and compliance with UL 224 and CSA 198. It's recommended for projects demanding safety, flexibility, and weather resistance.

Q: Where is FP 300 commonly used in India?

A: FP 300 is widely used across industries in India, including electrical, automotive, telecommunications, renewable energy, and OEM manufacturing sectors, wherever reliable insulation and protection are essential.

Q: What are the primary benefits of using 3M Heat Shrink FP 300?

A: FP 300 offers excellent electrical insulation, flame retardancy, durable mechanical protection, weather resistance, and compliance with international safety standards, ensuring long-lasting performance and safety in challenging environments.

Q: Is adhesive lining present in the FP 300 heat shrink tubing?

A: No, FP 300 features a non-adhesive, single-wall polyolefin construction. It forms a tight electrical and mechanical seal when shrunk, but does not have an internal adhesive lining.
