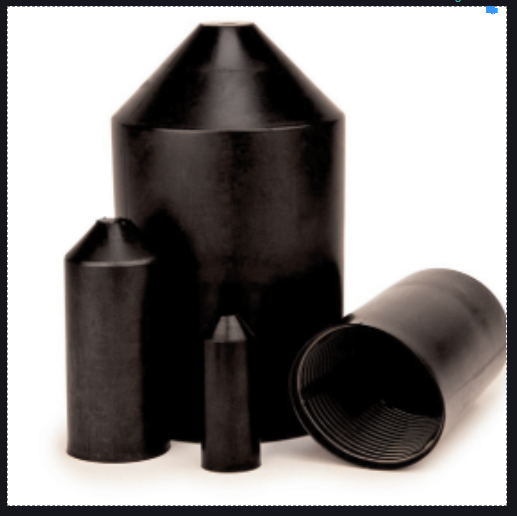

3M Heat Shrink Heavy Duty Breakout Boots and End Caps

Name: 3M Heat Shrink Heavy Duty Breakout Boots and End Caps
Brand: Samco Technologies
Price: 350 INR
Availability: InStock

Price 350 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

3M Heat Shrink Heavy Duty Breakout Boots and End Caps Specification

Feature
UV resistant, chemical and abrasion resistant, flame retardant

Installation Guideline
Shrink with standard heat gun or torch until fully conformed and sealed

Layer
Single layer

Density
1.2 Gram per cubic centimeter(g/cm3)

Size
Standard sizes for 2-core, 3-core, 4-core, and 5-core cables; End Caps for cable diameters 8mm to 140mm

Surface Treatment
Smooth, non-slip finish

Thermal Conductivity
0.16 W/(mK)

Product Type
Heat Shrink Heavy Duty Breakout Boots & End Caps

Material
Cross-linked Polyolefin

Rated Voltage
Up to 36kV

Tensile Strength
>10 MPa

Width
Varies as per type (Breakout Boots & End Caps)

Thickness
2.5 mm nominal

Application
Sealing and protection of cable joints, wire connections, and cable ends

Breakdown Voltage
>25 kV/mm

Heat Conductivity
<0.22 W/(mK)

Color
Black

Max Withstanding Temperature
125C

Standard
IEC 60684-3-215

Longitudinal Change
<5%

Operating Temperature Range
-55°C to +125°C

Waterproof Rating
IP68

Compatibility
Suitable for LV, MV, HV cable joints and terminations

Adhesive Type
Optional internal sealant adhesive for enhanced waterproof performance

Flammability
UL 94 V-0

Shelf Life
5 years (when stored under recommended conditions)

Storage Condition
Dry, cool place away from direct sunlight

Packaging
Individually packed or in sets as per requirement

Residual Halogen Content
Low halogen

Shrink Ratio
3:1

3M Heat Shrink Heavy Duty Breakout Boots and End Caps Trade Information

Minimum Order Quantity
10 Pieces

Delivery Time
7 Days

Sample Available
Yes

Main Domestic Market
All India

About 3M Heat Shrink Heavy Duty Breakout Boots and End Caps

Need a waterproof seal on your electrical connections? Put 3M Heat Shrink Molded Shapes to the task. Available in breakout boots and end caps, each shape is easy to install and provides exceptional protection from chemicals, water, moisture, air and dirt.

Comprehensive Cable Protection

Ensure complete sealing and insulation of LV, MV, and HV cable joints and ends with 3M's heavy duty breakout boots and end caps. The high-performance, cross-linked polyolefin material provides superior resistance against UV exposure, chemicals, and physical abrasion. With a snug, smooth non-slip finish, these components are tailored to endure challenging conditions, delivering long-term protection for critical connections in industrial and utility sectors.

Versatile Application & Sizing

Offered in standard sizes compatible with 2-core, 3-core, 4-core, and 5-core cables, and end caps suitable for diameters from 8mm up to 140mm, 3M's boots and caps are designed to cover a wide range of cable configurations often encountered in power and control systems. This adaptability ensures a precise fit and optimal function for both new installations and retrofit projects.

Reliable Installation for Lasting Results

Installing these boots and end caps is straightforward-simply heat them with a standard heat gun or torch until they fully conform and bond to the cable's surface. For enhanced waterproof performance, select models offer an internal sealant adhesive. Proper installation guarantees resistance to environmental stress and mechanical strain, providing a long service life under IEC 60684-3-215 and other international standards.

FAQ's of 3M Heat Shrink Heavy Duty Breakout Boots and End Caps:

Q: How are 3M Heat Shrink Heavy Duty Breakout Boots and End Caps installed?

A: They are installed using a standard heat gun or torch. Heat the boot or end cap evenly until it shrinks tightly over the cable joint, connection, or end, ensuring a secure and waterproof seal. For models with internal sealant adhesive, heating will also activate the adhesive, enhancing ingress protection.

Q: What types of cables are these boots and end caps compatible with?

A: They are compatible with low, medium, and high voltage (LV, MV, HV) cables and designed for various configurations, including 2-core, 3-core, 4-core, and 5-core cables. End caps are suitable for cable diameters ranging from 8mm to 140mm.

Q: When should I use the optional internal sealant adhesive?

A: The internal sealant adhesive is recommended when enhanced waterproofing is required, such as in underground or outdoor installations where the highest level of environmental protection (IP68) is necessary.

Q: What are the main benefits of using these 3M heat shrink boots and end caps?

A: Key benefits include excellent sealing against water and dust (IP68), resistance to UV radiation, chemicals, and abrasion, flame retardant performance (UL 94 V-0), and long-term reliability in demanding operating conditions.

Q: Where should these products be stored before installation?

A: Store them in a dry, cool place out of direct sunlight to maintain their integrity. Under recommended conditions, they have a shelf life of five years.

Q: What is the standard and compliance of these products?

A: These boots and end caps comply with the IEC 60684-3-215 standard and are certified for UL 94 V-0 flammability, ensuring performance and safety in industrial applications.

Q: What is the process if I need a specific packaging configuration?

A: 3M offers flexible packaging, so you can request the products to be individually packed or provided in sets depending on your project's requirements. Contact your supplier or trader in India to specify your packaging needs.
